| Place of Origin: | China |
| ชื่อแบรนด์: | XD |
| ได้รับการรับรอง: | CE / ISO9001 |
| Model Number: | CNC35 |
| Minimum Order Quantity: | 1 set |
|---|---|
| ราคา: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 20 days |
| เงื่อนไขการชำระเงิน: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis number:: | 3 | Servo brand:: | Sanyo denki |
|---|---|---|---|
| Optional tooling:: | Spinner | Painting:: | Blue |
| Package:: | Wooden case | Gross weight:: | 1400kgs |
| แสงสูง: | spring coiler machines,spring maker machine |
||

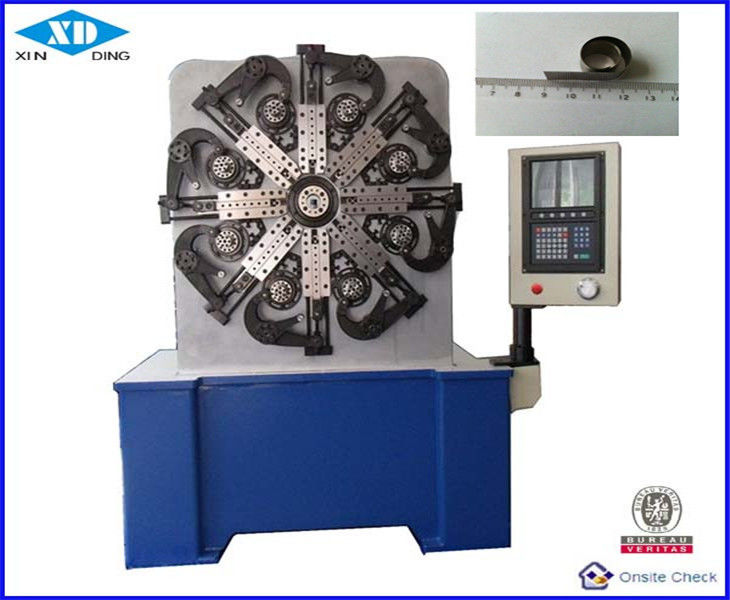

3-axis XD-CNC35 Universal spring making machine
Technical Parameter
|
Model: |
XD-CNC35 |
|
Wire diameter: |
φ1.8～3.5 mm |
|
Axes: |
3-4 axes |
|
Maximum Outside Diameter: |
70mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed |
150m/min |
|
Memory Number: |
100 PCS |
|
Wire Feed Servo Motor: |
5.5 KW |
|
Cam Servo Motor: |
5.5 KW |
|
Quin Servo Motor |
1 KW |
|
Power AC: |
220V 3P 50/60Hz |
|
Dimensions (L*D*H): |
1800X140X800MM |
|
Wooden Case Dimensions |
2000x1600x1200mm |
|
Machine Weight: |
1300Kg |
|
Gross Weights |
1400Kg |
Details:
1. CNC35 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.
2. XD-CNC35 universal spring machine is equipped with XinDing spring machine controller. The controller
system can save 1000 material numbers. Axis location, feeding data, production speed and production
output are displayed on the screen. The program data can be set and changed easily.
3. Optional accessories: Cutting tools, rolling axis, safety door.
Sample springs:
