| Place of Origin: | China |
| ชื่อแบรนด์: | XD |
| ได้รับการรับรอง: | CE / ISO9001 |
| Model Number: | AZ-5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| ราคา: | negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 7 week |
| เงื่อนไขการชำระเงิน: | TT LC |
| Supply Ability: | 30 sets per month |
| Max stroke:: | 200mm | Speed:: | 1-300pcs/min |
|---|---|---|---|
| Package:: | Wooden case | Load:: | 5N |
| Weight:: | 20kgs | Power ac:: | 220v 50hz |
| เน้น: | spring testing equipment,spring tester |
||

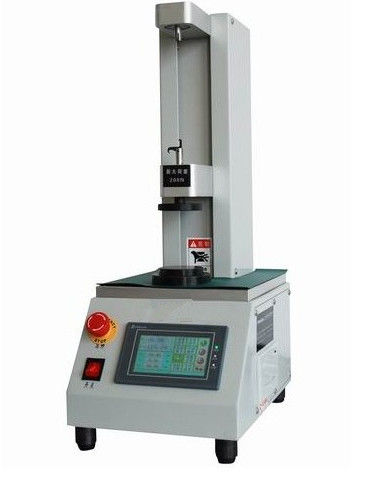

XD-AZ-5 spring testing machine with accurate printed recording for compressed and tensile force
Technical parameters:
|
1.Model |
PG-AZ-5 |
PG-AZ-20 |
PG-AZ-50 |
PG-AZ-100 |
|
2.Load |
5N |
20N |
50N |
100N |
|
3.Min load value |
0.0001N |
0.001N |
0.001N |
0.01N |
|
4.Unit |
N,g |
N, Kg,g |
||
|
5.Load precision |
±0.5% |
|||
|
6.Length precision |
0.02mm |
|||
|
7.Max stroke |
200mm |
|||
|
8.Speed |
1～300mm/min |
|||
|
9.Table diameter |
φ20mm |
φ60mm |
||
|
10.Manual movement value |
1mm,0.1mm,0.01mm |
|||
|
11.Testing choice |
compression or tension |
|||
|
12.Spring testing option |
1,testing load by setting length 2,testing load by setting deformation |
|||
|
13.Size |
220mm×330mm×500mm |
|||
|
14.Weight |
20kg |
|||
|
15.Power ac |
220V 0.5A |
|||
Main Applications:
The spring testing machine is mainly used to measure and analyze the mechanical performance ( tensile force, compressive force, displacement, and stiffness etc) of the springs ( cylinder spring, butterfly spring, tower-shaped spring, closing ring, flat spring, deformed spring and other precision spring).
