| Place of Origin: | China |
| ชื่อแบรนด์: | Xinding |
| ได้รับการรับรอง: | CE / ISO9001 |
| Model Number: | XDM-G253 |
| Minimum Order Quantity: | 1 set |
|---|---|
| ราคา: | negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| เงื่อนไขการชำระเงิน: | TT LC |
| Supply Ability: | 20 sets per month |
| Wire diameter: | 3.00-8.00mm | Power: | 15kw |
|---|---|---|---|
| Weight: | 2300kg | Control: | CNC |
| Precison: | High | Package: | Wooden case |
| เน้น: | spring grinding machine,spring end grinder |
||

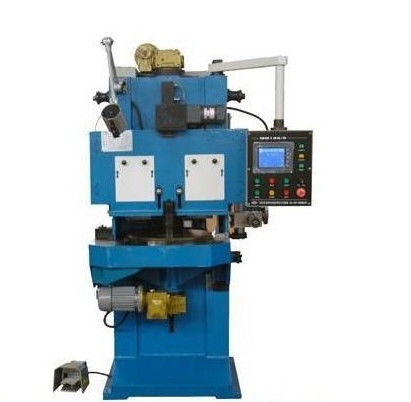

CNC controlled spring end grinding machine for two heads of prings
Technical Parameter:
| Gringding Wheel |
Ф420*50mm |
|
Feeding Plate |
Ф580mm |
|
MAX.O.D |
Ф5-80mm |
|
Wire Diameter |
Ф 3.00-8.00mm |
|
Spring Height |
5-230mm |
|
Power |
15KW |
|
Overall Dimension |
L1700*W1650*H2450 |
|
Weight |
2300KG |
Details:
1 Vertical double surface grinding machine with CNC control.
This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
2. For replacing is very suitable for high-precision grinding proposal.
