| Place of Origin: | China |
| ชื่อแบรนด์: | Xinding |
| ได้รับการรับรอง: | CE / ISO9001 |
| Model Number: | XDM-G255 |
| Minimum Order Quantity: | 1 set |
|---|---|
| ราคา: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| เงื่อนไขการชำระเงิน: | TT LC |
| Supply Ability: | 20 sets per month |
| Wire diameter: | 3.00-10.00mm | Power: | 23kw |
|---|---|---|---|
| Weight: | 2800kg | Package:: | Wooden case |
| Control:: | CNC | Precision:: | High |
| แสงสูง: | spring grinding machine,spring end grinder |
||

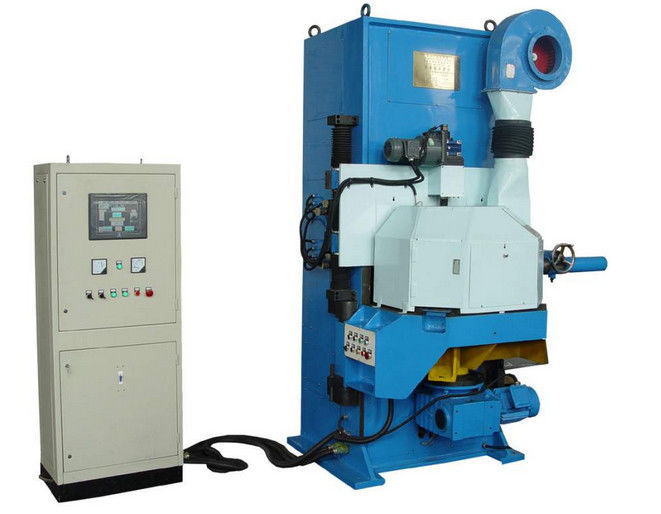

CNC controlled spring end grinding machine for all models of spring
Technical Parameter:
| Gringding Wheel |
Ф420*50mm |
|
Feeding Plate |
Ф580mm |
|
MAX.O.D |
Ф5-120mm |
|
Wire Diameter |
Ф 3.00-10.00mm |
|
Spring Height |
20-330mm |
|
Power |
23KW |
|
Overall Dimension |
L1800*W1850*H2450 |
|
Weight |
2800KG |
Details:
1. Vertical double surface grinding machine with CNC control.
This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
2. Feeding speed of grinding heads is adjustable on the basis of pressure from springs.
Fine grinding process is available,as well as compensation function on grinding wheels. The grinding process is operated manually and automatically.
3. For replacing is very suitable for high-precision grinding proposal.
